High seasonal efficiency water chillers
POWERCIAT™ LX
The latest generation of POWERCIAT high-efficiency air-to-water chillers are the perfect solution for all cooling applications in the offices, healthcare, industry, administration, shopping centers and collective housing markets.
Refrigerant: R-134a
Compressor type: screw
Cooling capacity: 273 to 1 493 kW
POWERCIAT series LX HE
Cooling only version High seasonal energy efficiency.
The product is optimized for part load applications and fulfils the provisions of the new ecodesign regulation governing comfort and process applications. In this case, the machine is equipped as standard with variable-speed fans with AC motor and external speed regulator, allowing for optimization of the part load efficiency throughout the year.
- HE high seasonal efficiency
- HE LN option: high seasonal efficiency low noise
- HE XLN option: high seasonal efficiency xtra low noise
- HE SLN option: high seasonal efficiency super low noise
POWERCIAT series LX XE
Premium cooling only version.
The product is optimized for part load applications and fulfils the provisions of the new ecodesign regulation governing comfort and process applications, while also facilitating a return on investment. In this case, the machine is equipped with EC-type variable-speed fans as standard, enabling the optimum part load efficiency to be achieved throughout the year.
- XE: premium
- XE: LN option premium low noise
- XE: XLN option premium xtra low noise
The latest generation of POWERCIAT high-efficiency air-to-water chillers are the perfect solution for all cooling applications in the offices, healthcare, industry, administration, shopping centers and collective housing markets.
These units are designed for outdoor installation and require no special protection against adverse weather conditions.
POWERCIAT is optimized to use non-ozone depleting HFC R-134a refrigerant.
This range guarantees compliance with the most demanding requirements for increased seasonal energy efficiency (SEER and SEPR) and CO2 reduction to comply with the various applicable European directives and regulations.
POWERCIAT units are packaged machines supplied as standard with the following components:
- Twin-screw semi-hermetic compressors
- Flooded shell and tube type chilled-water evaporator
- Air-cooled exchanger, all-aluminum micro-channel coil with axial fan motor assembly
- Electrical power and remote-control cabinet:
- 400 V-3ph-50 Hz (+/-10%) mains power supply + earth
- Transformer fitted as standard on the machine for supplying the remote-control circuit with 24V
- Connect Touch electronic control module
- Casing for outdoor installation
The entire POWERCIAT range complies with the following EC directives and standards:
- Machinery directive 2006/42/EC
- Electromagnetic compatibility directive 2014/30/EU
- EMC immunity and emissions EN 61800-3 ‘C3'
- Low voltage directive 2014/35/EU
- RoHS 2011/65/EU
- Pressure equipment directive (PED) 2014/68/EU
- Machinery directive EN 60-204 - 1
- Refrigeration systems and heat pumps EN 378-2
- Regulation (EU) no. 2016/2281 implementing directive 2009/125/EC about ecodesign requirements
Energy excellence
- SEER up to 4.7, SEPR up to 6.2
- Operating range from -20 °C to +55 °C
- Compact and silent
- High efficiency flooded shell and tube evaporator
- Aluminum micro-channel condenser

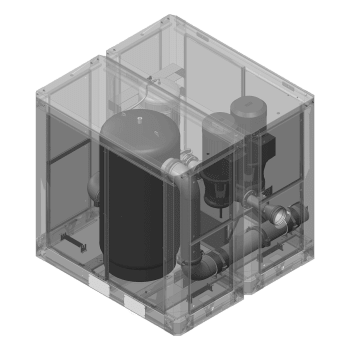

- Hydraulic module & heat recovery
POWERCIAT series LX HE
Cooling only version High seasonal energy efficiency.
The product is optimized for part load applications and fulfils the provisions of the new ecodesign regulation governing comfort and process applications. In this case, the machine is equipped as standard with variable-speed fans with AC motor and external speed regulator, allowing for optimization of the part load efficiency throughout the year.
- HE high seasonal efficiency
- HE LN option: high seasonal efficiency low noise
- HE XLN option: high seasonal efficiency xtra low noise
- HE SLN option: high seasonal efficiency super low noise
POWERCIAT series LX XE
Premium cooling only version.
The product is optimized for part load applications and fulfils the provisions of the new ecodesign regulation governing comfort and process applications, while also facilitating a return on investment. In this case, the machine is equipped with EC-type variable-speed fans as standard, enabling the optimum part load efficiency to be achieved throughout the year.
- XE: premium
- XE: LN option premium low noise
- XE: XLN option premium xtra low noise
The latest generation of POWERCIAT high-efficiency air-to-water chillers are the perfect solution for all cooling applications in the offices, healthcare, industry, administration, shopping centers and collective housing markets.
These units are designed for outdoor installation and require no special protection against adverse weather conditions.
POWERCIAT is optimized to use non-ozone depleting HFC R-134a refrigerant.
This range guarantees compliance with the most demanding requirements for increased seasonal energy efficiency (SEER and SEPR) and CO2 reduction to comply with the various applicable European directives and regulations.
POWERCIAT units are packaged machines supplied as standard with the following components:
- Twin-screw semi-hermetic compressors
- Flooded shell and tube type chilled-water evaporator
- Air-cooled exchanger, all-aluminum micro-channel coil with axial fan motor assembly
- Electrical power and remote-control cabinet:
- 400 V-3ph-50 Hz (+/-10%) mains power supply + earth
- Transformer fitted as standard on the machine for supplying the remote-control circuit with 24V
- Connect Touch electronic control module
- Casing for outdoor installation
The entire POWERCIAT range complies with the following EC directives and standards:
- Machinery directive 2006/42/EC
- Electromagnetic compatibility directive 2014/30/EU
- EMC immunity and emissions EN 61800-3 ‘C3'
- Low voltage directive 2014/35/EU
- RoHS 2011/65/EU
- Pressure equipment directive (PED) 2014/68/EU
- Machinery directive EN 60-204 - 1
- Refrigeration systems and heat pumps EN 378-2
- Regulation (EU) no. 2016/2281 implementing directive 2009/125/EC about ecodesign requirements
Energy excellence
- SEER up to 4.7, SEPR up to 6.2
- Operating range from -20 °C to +55 °C
- Compact and silent
- High efficiency flooded shell and tube evaporator
- Aluminum micro-channel condenser
- Hydraulic module & heat recovery
