Air-to-water heat pumps

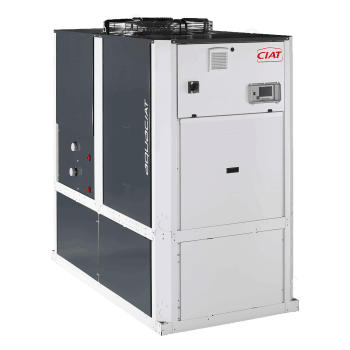

AQUACIAT™ ILD R‑32

The AQUACIAT air-cooled chillers provide an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing.

Refrigerant: R-32
Compressor type: Scroll
Cooling capacity: 40 to 150 kW
Heating capacity: 40 to 150 kW


cooling-only-icon-white
cooling-and-heating-icon-white
hydraulic-module-icon-white
heat-recovery-icon-white
R-32-refrigerant-icon-white

AQUACIAT ILD series

Chiller with or without hydraulic module

2 different sound level versions:

  • Standard
  • Very low noise (LN)

3 hydraulic versions

  • Base unit
  • Version with hydraulic pump (option)
  • Version with hydraulic pump and water buffer tank (option)

11 available sizes from 150R to 600R

The AQUACIAT air to water heat pumps provides an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing.

These units are designed for outdoor installation and do not require protection from adverse weather conditions.

This new range is designed with the non-ozone depleting refrigerant R-32 and thereby meets the most demanding environmental protection by reduce the carbon foot print up to -80% and high seasonal energy efficiency (SCOP) requirements, +10% versus R-410A solution.

  • R-32 refrigerant
  • Compact design and small footprint for outdoor installation
  • RAL 7024 - 7035 sheet metal frame
  • 1 or 2 refrigerant circuits
  • Electronic expansion valves
  • New-generation, high-efficiency scroll compressors
  • High efficiency brazed plates heat exchangers
  • High efficiency shell and tubes heat exchangers
  • Air-cooled condenser
  • Propeller fan with optimized profile composite blades
  • AC fixe speed fan motors (base unit)
  • Variable speed fans (option EC or AC+drive)
  • Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
  • CONNECT TOUCH controller with numerous auto adaptive functions
  • Interface with intuitive multilingual 4.3’’ color touchscreen
  • Web server (IP) for access to the interface screen
  • Communication with the CMS via the ModBus/JBus protocol as standard (LON and BacNet optional)
  • Environmentally-friendly > eco-design and a very low refrigerant load
  • AQUACIAT has been designed in accordance with ecodesign standards to minimize its impact on the environment throughout its entire life cycle. The combination of two technologies — new coil design and dry-ex evaporator — enables the refrigerant load to be significantly reduced, making AQUACIAT one of the most eco-friendly chillers on the market
  • AQUACIAT has been developed and optimized with the R-32 refrigerant with environmentally sustainable characteristics zero ozone effect (ODP = 0) and low global warming potential (GWP = 675)
  • Technological choices of refrigerant fluid and components have reduced the environmental impact (tonne equivalent CO2) by almost 77% compared to the previous generation
  • Reduced energy consumption > performance and high efficiency
  • Very high SEER seasonal efficiency, above ecodesign minimum
  • Energy savings > heat recovery
  • Partial heat recovery allowing the demands of the largest number of applications to be met and providing energy savings throughout the year
  • Quiet operation > low noise levels
  • Two acoustic levels (standard, xtra low noise) to meet all noise performance requirements
  • Multi-solution > a solution for every type of cooling application
  • With its wide range of chilled water temperatures, AQUACIAT meets all the needs of the service and industrial sectors
  • All seasons, all climates > use in all conditions
  • Broad air temperature operating range enabling it to meet the needs of all sectors of activity in all countries
  • Outdoor temperatures from -20°C with the variable speed fan option up to +44°C in cooling mode
  • Reduced dimensions > compact units
  • AQUACIAT has a compact design. Its footprint and volume have been optimized for easy installation on any site
  • Quick and easy maintenance > excellent accessibility
  • Large removable panels enable quick access to components to simplify maintenance operations
  • Quick installation > easy connections
  • AQUACIAT is particularly easy to install. The actual space needed is that of the unit's footprint
  • Control transformer (included) enables easy 400 V three-phase wiring without neutral
  • Easy hydraulic connections with integration of hydraulic module
  • A complete offer > standard configurations available
  • Basic version without hydrulic module
  • Version with pump only, fixed or variable speed pump
  • Version with pump and buffer tank
  • A single standard, a straightforward commercial offer, and a solution tailored to every need

AQUACIAT ILD series

Chiller with or without hydraulic module

2 different sound level versions:

  • Standard
  • Very low noise (LN)

3 hydraulic versions

  • Base unit
  • Version with hydraulic pump (option)
  • Version with hydraulic pump and water buffer tank (option)

11 available sizes from 150R to 600R

The AQUACIAT air to water heat pumps provides an optimal solution for all cooling applications in offices, healthcare facilities, administration and commercial premises and collective housing.

These units are designed for outdoor installation and do not require protection from adverse weather conditions.

This new range is designed with the non-ozone depleting refrigerant R-32 and thereby meets the most demanding environmental protection by reduce the carbon foot print up to -80% and high seasonal energy efficiency (SCOP) requirements, +10% versus R-410A solution.

  • R-32 refrigerant
  • Compact design and small footprint for outdoor installation
  • RAL 7024 - 7035 sheet metal frame
  • 1 or 2 refrigerant circuits
  • Electronic expansion valves
  • New-generation, high-efficiency scroll compressors
  • High efficiency brazed plates heat exchangers
  • High efficiency shell and tubes heat exchangers
  • Air-cooled condenser
  • Propeller fan with optimized profile composite blades
  • AC fixe speed fan motors (base unit)
  • Variable speed fans (option EC or AC+drive)
  • Electrical cabinet equipped with remote control transformer, safety switch, numbered wiring
  • CONNECT TOUCH controller with numerous auto adaptive functions
  • Interface with intuitive multilingual 4.3’’ color touchscreen
  • Web server (IP) for access to the interface screen
  • Communication with the CMS via the ModBus/JBus protocol as standard (LON and BacNet optional)
  • Environmentally-friendly > eco-design and a very low refrigerant load
  • AQUACIAT has been designed in accordance with ecodesign standards to minimize its impact on the environment throughout its entire life cycle. The combination of two technologies — new coil design and dry-ex evaporator — enables the refrigerant load to be significantly reduced, making AQUACIAT one of the most eco-friendly chillers on the market
  • AQUACIAT has been developed and optimized with the R-32 refrigerant with environmentally sustainable characteristics zero ozone effect (ODP = 0) and low global warming potential (GWP = 675)
  • Technological choices of refrigerant fluid and components have reduced the environmental impact (tonne equivalent CO2) by almost 77% compared to the previous generation
  • Reduced energy consumption > performance and high efficiency
  • Very high SEER seasonal efficiency, above ecodesign minimum
  • Energy savings > heat recovery
  • Partial heat recovery allowing the demands of the largest number of applications to be met and providing energy savings throughout the year
  • Quiet operation > low noise levels
  • Two acoustic levels (standard, xtra low noise) to meet all noise performance requirements
  • Multi-solution > a solution for every type of cooling application
  • With its wide range of chilled water temperatures, AQUACIAT meets all the needs of the service and industrial sectors
  • All seasons, all climates > use in all conditions
  • Broad air temperature operating range enabling it to meet the needs of all sectors of activity in all countries
  • Outdoor temperatures from -20°C with the variable speed fan option up to +44°C in cooling mode
  • Reduced dimensions > compact units
  • AQUACIAT has a compact design. Its footprint and volume have been optimized for easy installation on any site
  • Quick and easy maintenance > excellent accessibility
  • Large removable panels enable quick access to components to simplify maintenance operations
  • Quick installation > easy connections
  • AQUACIAT is particularly easy to install. The actual space needed is that of the unit's footprint
  • Control transformer (included) enables easy 400 V three-phase wiring without neutral
  • Easy hydraulic connections with integration of hydraulic module
  • A complete offer > standard configurations available
  • Basic version without hydrulic module
  • Version with pump only, fixed or variable speed pump
  • Version with pump and buffer tank
  • A single standard, a straightforward commercial offer, and a solution tailored to every need
2-card-pep-test-3-1

Declaration PEP ecopassport®

This product has a compliant environmental declaration. The PEP stands for "Product Environmental profile" registered under the PEP ecopassport®.

The PEP files provides reliable information about HVAC-R product environmental impact to take the best investment decisions and contribute to active sustainability and carbon reduction programs.

2-card-eurovent-test-3-1

Eurovent certified product performance

This product performance complies with the European standards tests, EN 1048, more specifically, under the exact customer-defined operating conditions. The Eurovent certification guarantees the technical performance rating stated on the product.
