Proportional-integral-derivative electronic water control
V3000 KNX

• Built-in version factory fitted to terminal units

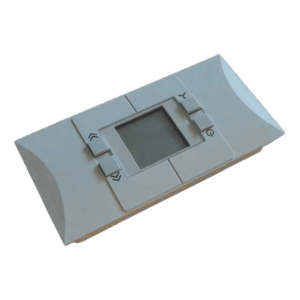

• Wall-mounted version with display to be connected by the installer.
• Wall-mounted version with potentiometer to be connected by installer
• Radiofrequency remote control version

The V3000 KNX control system is a CIAT electronic control system designed for controlling a non-independent air conditioning terminal unit (UTA and cassette-type fan coil units...) for applications using 2 pipes, 2 pipes/2 wires, 4 pipes operating with recycled air.

It can manage several units in a master/slave configuration. Not only does it combine the economic benefits of installing and operating the centralized production of hot and chilled water, it also allows individual temperature control in all rooms.

• Power supply: 230 V, 50/60 Hz
• Control: PID derived integrated proportional electronics
• Control of water
• Valve control: 24 V 3 point modulating valve
• Ventilation control: 3 manual and automatic speeds
• Electrical stage control: timed proportional
• Adjustment of the set point: by different room terminals with display or potentiometer
• Operating signals: by LCD screen or LEDs
• Application adjustment: with parameters
• Changeover management: automatic with changeover sensor or control line
• Design: CIAT specific /: fascia: white RA9010
• CIAT offers several communication solutions: KNX sourced controller - certified by KNX international
• Communication media: by shielded twisted wires (number = 2)

• The intelligence of communication systems
• Ergonomics and functions of the room terminals
• CIAT HEE concept: optimising energy savings
• Intelligent communication
• User-friendly for the customer
• The top of the range solution for unmatched design
• Master/slave operation
• Certified KNX sourced control
